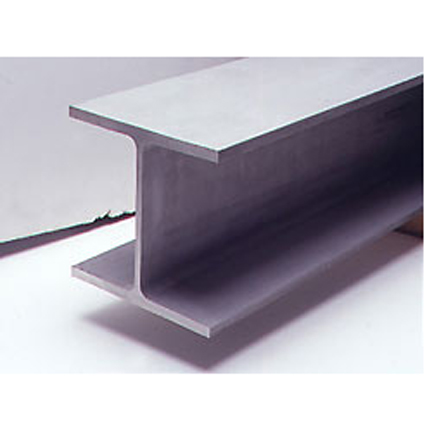

H型鋼 HXBXt₁/t₂

公稱尺寸

截面尺寸

Kg/M

100 x 100

100 x 100 x 6 x 8

16.9

125 x 125

125 x 125 x 6.5 x 9

23.6

150 x 150

150 x 150 x 7 x 10

31.1

175 x 175

175 x 175 x 7.5 x 11

40.4

200 x 200

*200 x 200 x 8 x 12

49.9

200 x 204 x 12 x 12

56.2

250 x 250

*250 x 250 x 9 x 14

71.8

250 x 250 x 14 x 14

81.6

300 x 300

*294 x 302 x 12 x 12

83.4

300 x 300 x 10 x 15

93.0

*300 x 305 x 15 x 15

105.0

*304 x 301 x 11 x 17

105.0

*312 x 303 x 13 x 21

129.0

*318 x 307 x 17 x 24

153.0

*326 x 310 x 20 x 28

180.0

350 x 350

*338 x 351 x 13 x 13

105.0

*344 x 348 x 10 x 16

113.0

*344 x 354 x 16 x 16

129.0

350 x 350 x 12 x 19

135.0

*350 x 357 x 19 x 19

154.0

*360 x 354 x 16 x 24

174.0

*368 x 356 x 18 x 28

202.0

*378 x 358 x 20 x 33

236.0

400 x 400

*338 x 402 x 15 x 15

140.0

*394 x 398 x 11 x 18

147.0

*394 x 405 x 18 x 18

168.0

400 x 400 x 13 x 21

172.0

*400 x 408 x 21x x21

197.0

*414 x 405 x 18 x 28

232.0

100 x 50

*100 x 50 x 5 x 7

9.3

125 x 60

*125 x 60 x 6 x 8

13.1

150 x 75

150 x 75 x 5 x 7

14.0

175 x 90

*175 x 90 x 5 x 8

18.0

200 x 100

*198 x 99 x 4.5 x 7

17.8

200 x 100 x 5.5 x 8

20.9

250 x 125

*248 x 124 x 5 x 8

25.1

250 x 125 x 6 x 9

29.0

300 x 150

*298 x 149 x 5.5 x 8

32.0

300 x 150 x 6.5 x 9

36.7

350 x 175

*346 x 174 x 6 x 9

41.2

350 x 175 x 7 x 11

49.4

400 x 200

*396 x 199 x 7 x 11

56.1

400 x 200 x 8 x 13

65.4

450 x 200

*446 x 199 x 8 x 12

65.1

450 x 200 x 9 x 14

74.9

*456 x 201 x 10 x 17

87.9

*466 x 205 x 14 x 22

118.0

*478 x 208 x 17 x 28

149.0

500 x 200

*496 x 199 x 9 x 14

77.9

*500 x 200 x 10 x 16

88.2

*506 x 201 x 11 x 19

102.0

*512 x 202 x 12 x 22

115.0

*518 x 205 x 15 x 25

137.

*528 x 208 x 18 x 30

165.0

*536 x 210 x 20 x 34

187.0

*548 x 215 x 25 x 40

228.0

600 x 200

*596 x 199 x 10 x 15

92.5

600 x 200 x 11 x 17

103.0

*606 x 201 x 12 x 20

118.0

*612 x 205 x 13 x 23

132.0

*618 x 205 x 16 x 26

156.0

*626 x 207 x 18 x 30

179.0

*634 x 209 x 20 x 34

202.0

*646 x 214 x 25 x 40

247.0

150 x 100

148 x 100 x 6 x 9

20.7

200 x 150

194 x 150 x 6 x 9

29.9

250 x 175

244 x 175 x 7 x 11

43.6

300 x 200

294 x 200 x 8 x 12

55.8

350 x 250

*336 x 249 x 8 x 12

67.6

340 x 250 x 9 x 14

78.1

*350 x 252 x 11 x 19

103.0

*356 x 256 x 15 x 22

126.0

*346 x 258 x 17 x 26

148.0

400 x 300

*386 x 299 x 9 x 14

92.2

390 x 300 x 10 x 16

105.0

*400 x 304 x 14 x 21

141.0

*410 x 308 x 18 x 26

177.0

*418 x 310 x 20 x 30

203.0

450 x 300

*434 x 299 x 10 x 15

103.0

440 x 300 x 11 x 18

121.0

*446 x 302 x 13 x 21

142.0

*450 x 304 x 15 x 23

158.0

*458 x 306 x 17 x 27

185.0

*468 x 308 x 19 x 32

216.0

500 x 300

482 x 300 x 11 x 15

111.0

488 x 300 x 11 x 18

125.0

*494 x 302 x 13 x 21

147.0

500 x 304 x 15 x 24

169.0

510 x 306 x 17 x 29

201.0

518 x 310 x 21 x 33

236.0

532 x 314 x 25 x 40

287.0

600 x 300

582 x 300 x 12 x 17

133.0

588 x 300 x 12 x 20

147.0

594 x 302 x 14 x 23

170.0

*600 x 304 x 16 x 26

194.0

*608 x 306 x 18 x 30

223.0

*616 x 308 x 20 x 34

252.0

*628 x 312 x 24 x 40

300.0

700 x 300

692 x 300 x 13 x 20

163.0

700 x 300 x 13 x 24

182.0

*708 x 302 x 15 x 28

212.0

*712 x 306 x 19 x 30

244.0

*718 x 308 x 21 x 33

269.0

*732 x 311 x 24 x 40

320.0

800 x 300

*792 x 300 x 14 x 22

188.0

800 x 300 x 14 x 26

207.0

*808 x 302 x 16 x 30

238.0

*816 x 306 x 20 x 34

283.0

*828 x 308 x 22 x 40

325.0

900 x 300

*890 x 299 x 15 x 23

210.0

*900 x 300 x 16 x 28

240.0

*912 x 302 x 18 x 34

283.0
